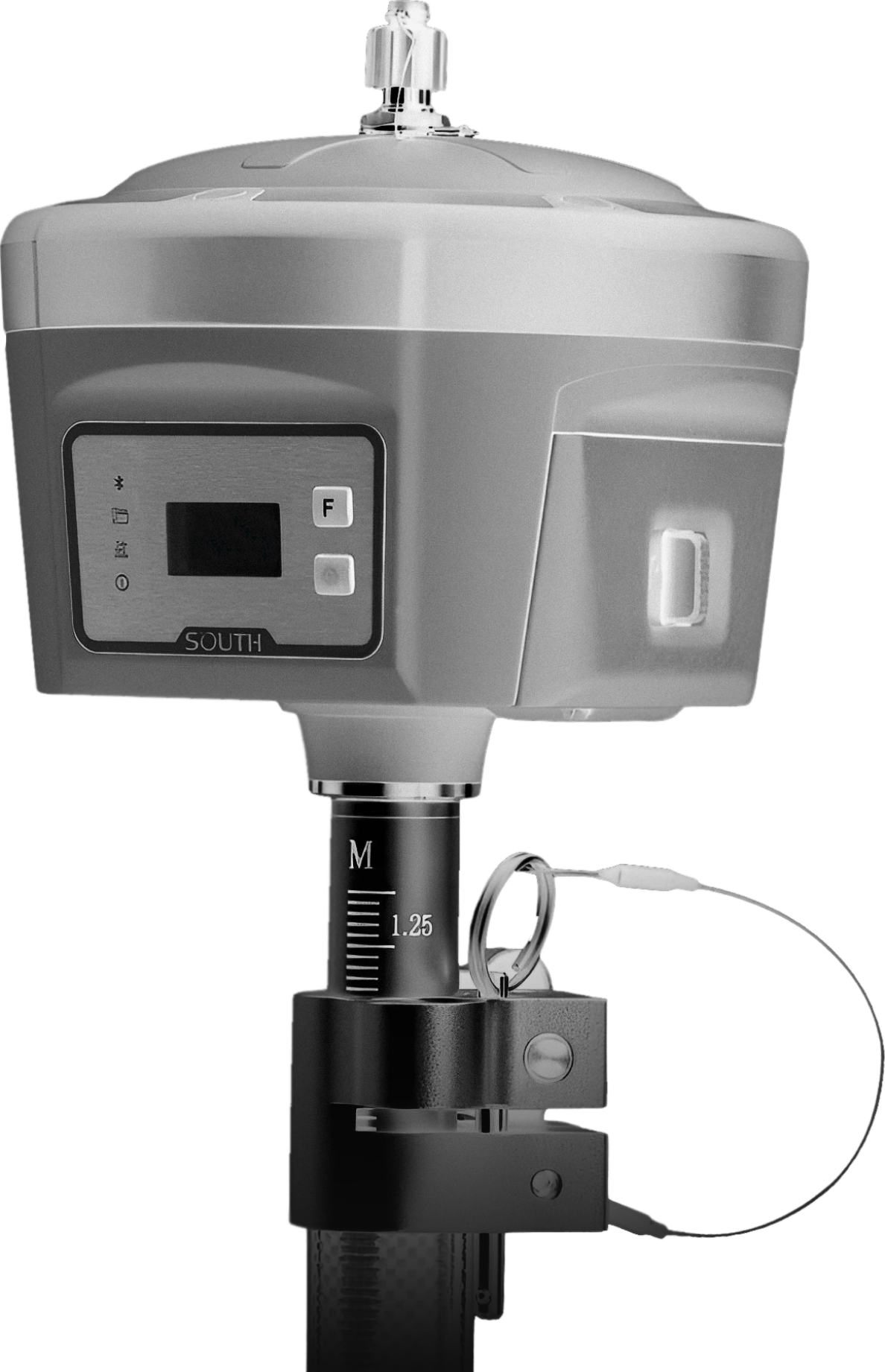

South’s most advanced GNSS receiver with Linux intelligence, high performance in a rugged magnesium alloy housing.

Advantages

Technical specifications

Equipment

RU

Advanced RF Spectrum Monitoring technology that identifies poor quality satellite signals by applying mitigation filters to them and improving their stability.

Trimble Maxwell 7 technology provides the fastest and most reliable RTK initialization. A fixed solution is available seconds after connecting to base stations.

Trimble Maxwell 7^®

Advanced RF Spectrum Monitoring^®

ADVANTAGES

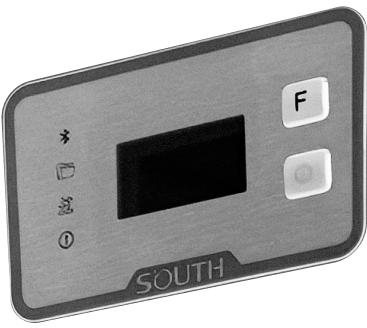

LCD display — 0.96-inch OLED LCD display supports multiple languages and is readable even in bright sunlight

Intelligent voice system — provides the receiver’s operating status and supports multiple languages, including Russian.

Web-based user interface — monitor G6 receiver status and make settings via Wi-Fi or USB

Built-in VHF module

Repeater function — G6 receives corrections from the base station and can broadcast them to other rovers via VHF

Built-in 4G LTE cellular module

Inertial system (IMU) — allows you to survey with any angle of inclination of roads, power lines, near transformer boxes and other objects with high electromagnetic background without fear for the correctness of the data obtained. The process of surveying with IMU becomes much more convenient, because you no longer need to hold the milestone on the level in search of the design grade

Electronic Level — The built-in electronic level data is displayed in the field software on the controller (if not using an IMU). The receiver can automatically record point coordinates when the specified tolerance for the receiver’s electronic level is reached

15.2х13.7

1.44 KG

TECHNICAL CHARACTERISTICS

Signal reception

Number of channels

336

GPS

L1 C/A, L2C, L2E, L5

GLONASS

L1 C/A, L1P, L2 C/A, L2P, L3

Compensation of milestone tilt angle

Inertial system (IMU)

Inertial system

RTK capability

GSM modem

4G

UHF modem

3W

Measuring accuracy (plan/height)

Static and fast static

2.5 mm + 0.5 mm/km / 5 mm + 0.5 mm/km

Initialization time

to 8s

Data Recording

Built-in memory

8 GB

SD/SDHC memory card slot

None

Communication ports

USB

Yes

Sequential connection

Lemo, RS232

Bluetooth

Yes

Wi-Fi

Yes

WEB interface

Yes

Charge

Internal power supply

Li-Ion battery

Operating time

30 h

INTEGRATED MODULE

IMU

The South G3 receiver is equipped with the latest generation IMU module.

This module has a maximum compensation angle of 60 degrees and is immune to electromagnetic interference, making it possible to work under power lines or near transformers with the IMU.

Tilt compensation with a frequency of 200 Hz!

PROTOCOL

FARLINK

The new built-in "Beaver" radio provides transmission of corrections up to 8 km, using the FarLink protocol.

Due to the high bandwidth of the protocol, the problem of transmitting a large amount of information from different satellite constellations is solved.
